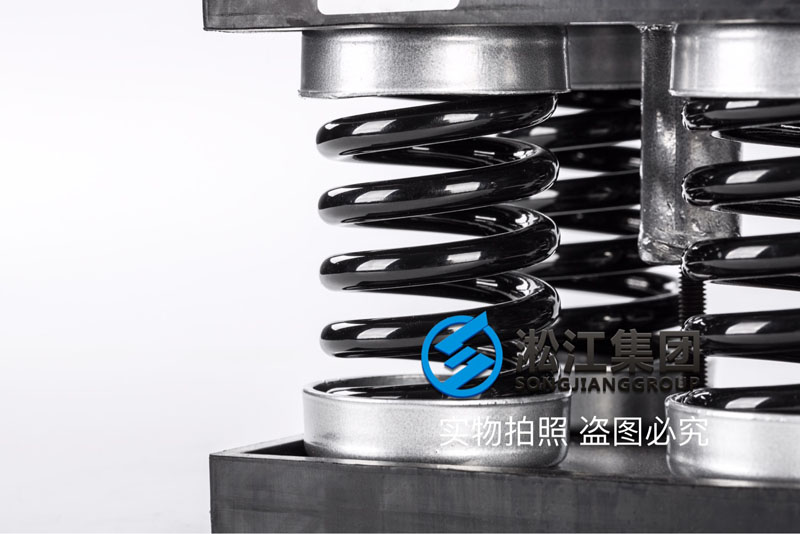

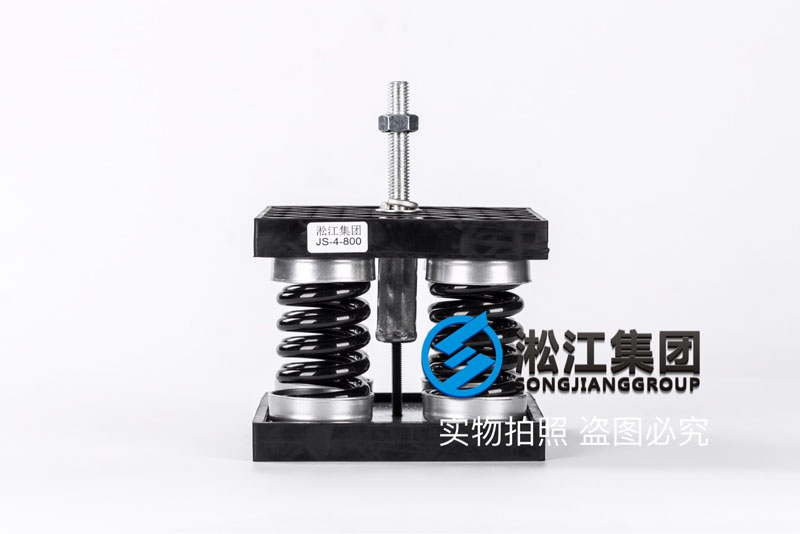

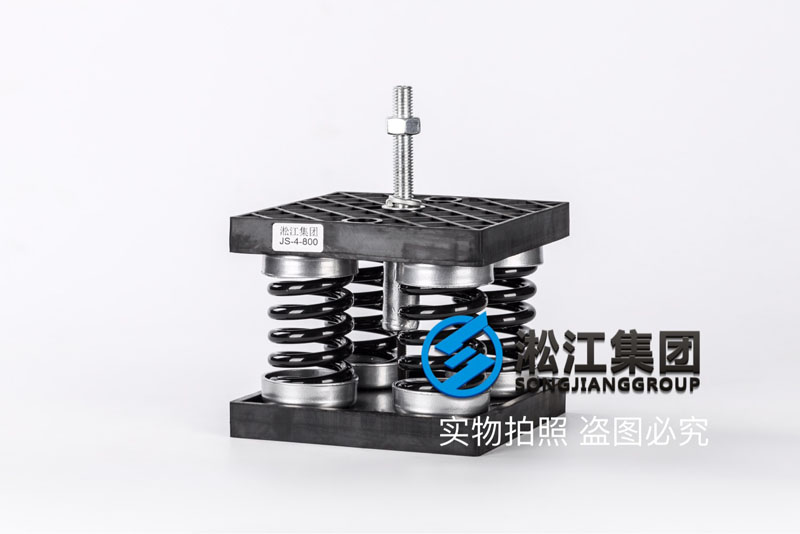

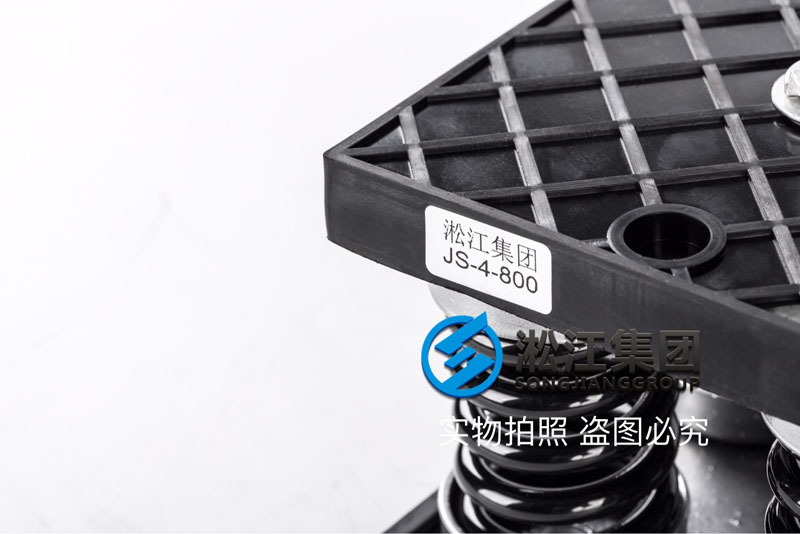

Spring damper for cooling water tower
上海淞江減震器集團有限公司官方網站為您介紹：JS-4-800散熱水塔彈簧減震器信息，淞江集團為樓頂散熱水塔推薦一款彈簧減震器，充分利用綜合鋼彈簧的低頻和橡膠減振的阻尼特性，可消除高頻傳，達到明顯的減振降噪效果，又能解決機械設備重心不均的減振難點。
Shanghai Songjiang absorber group limited official website for your introduction: JS-4-800 cooling tower spring shock absorber, Songjiang group for cooling tower workshop recommended a spring shock absorber, damping characteristics of the full use of integrated steel spring and rubber damping low frequency, can eliminate the high frequency of vibration and noise reduction effect is obvious, and to solve the difficulty of mechanical equipment vibration center are.
淞江集團生產的所有散熱水塔彈簧減震器產品室內使用最高質保10年，那么，淞江集團是如何保證產品能質保10年呢，淞江集團所有彈簧減震器彈簧采用汽車彈簧鋼，并非工業彈簧鋼可比，良好的原材料才能生產出更好的產品。
Songjiang Group production of all spring shock absorber products 10 years warranty, so the Songjiang group is how to ensure the product warranty of 10 years, Songjiang group all spring shock absorber spring with spring steel, spring steel industry is not comparable, good raw materials to produce better products.
本產品為敞開式結構，安裝時可直接放在設備下，調節好重心，然后通過固定孔連接上下端面，也可直接的安置在減振座分支承結構之間。適用風機，水泵，空調機組等機械設備的減振。
This product is an open structure. When installed, it can be directly placed under the equipment, adjust the center of gravity, then connect the upper and lower ends through the fixed holes, or directly install between the damping seat and the supporting structure. It is suitable for the vibration damping of the mechanical equipment, such as the fan, the water pump, the air conditioning unit and so on.
相關鏈接：主機彈簧減震器

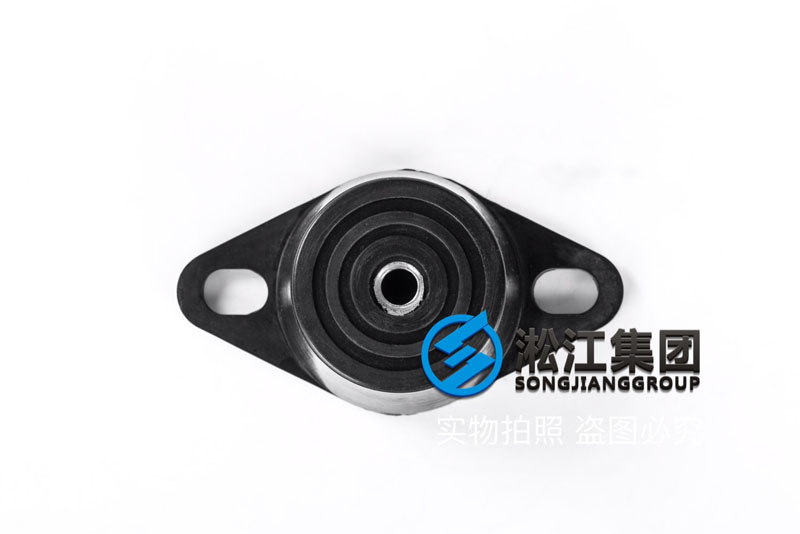

Rubber absorbers for embroidery machines
上海淞江減震器集團有限公司官方網站為您介紹：STR型刺繡機橡膠減震器信息，淞江集團為工業刺繡機推薦一款專用的橡膠減震器產品，該產品用在刺繡機上面具有良好的減震效果和降噪效果。
Shanghai Songjiang absorber group limited official website for your introduction: STR type embroidery machine rubber damper, Songjiang group industrial embroidery machine recommended a special rubber damper, the product used in embroidery machine above has good damping effect and the effect of noise.
STR型刺繡機橡膠減震器結構圖：
STR type rubber shock absorber structure:
STR型刺繡機橡膠減震器參數表：
STR rubber shock absorber parameter list:
| 型號?Model | L （mm） |
W（mm） | H （mm） |
CS（mm） | A （mm） |
B （mm） |
載荷 load（kg） | |
| Min | Max | |||||||
| STR-100 | 95 | 53 | 48 | M10 | 77 | 10 | 50 | 150 |
| STR-130 | 127 | 77 | 70 | M12 | 101 | 14 | 150 | 450 |
| STR-180 | 180 | 118 | 70 | M16 | 149 | 14 | 450 | 1000 |
了解該產品詳細參數請查看：【樣冊P81】STR型 橡膠減振器
相關鏈接：STR橡膠減震器安裝說明
]]>

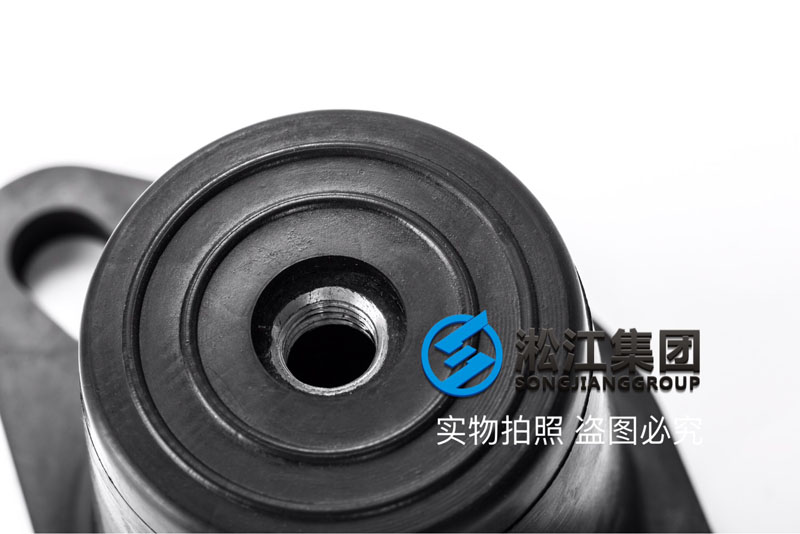

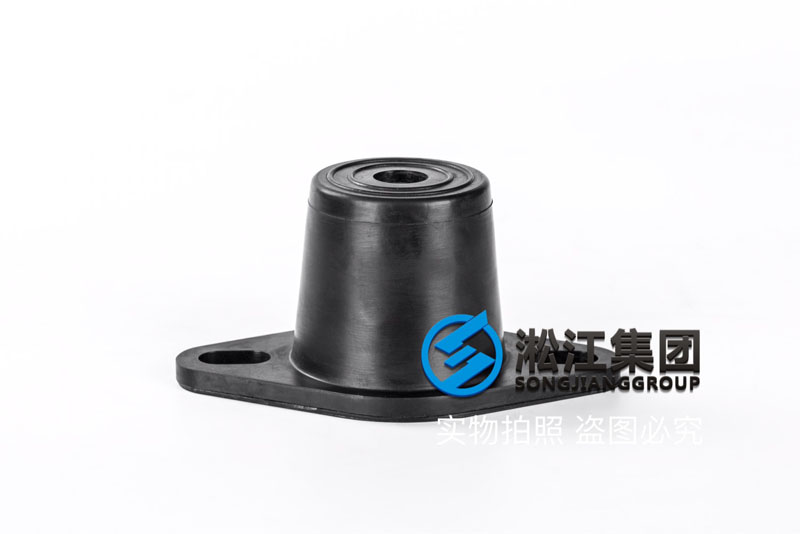

Vertical pump rubber shock absorber
上海淞江減震器集團有限公司官方網站為您介紹：RM120立式水泵橡膠減震器，淞江集團是一家從事工業減震器產品的企業，包括減震器的設計、研發、生產、銷售一體化集團性企業。
The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces you: RM120 vertical water pump rubber shock absorber, Songjiang group is an enterprise specializing in industrial shock absorber products, including the design, research and development, production and sales integration group business of shock absorber.
以上RM120立式水泵橡膠減震器信息來源于上海淞江減震器集團有限公司官方網站減震器欄目，以下是RM型橡膠減震器參數表：
The rubber damper information of the above RM120 distribution cabinet is from the shock absorber section of the official website of Shanghai Songjiang shock absorber Group Co., Ltd., the following is the RM rubber damper parameter table.
|
型號 Model
|
最佳載荷Optimal load
kg |
外形尺寸 Shape size?(mm)
|
||||
|
C
|
L
|
H
|
W
|
Φ
|
||
|
RM-60
|
60
|
76
|
105
|
43
|
10
|
9
|
|
RM-90
|
90
|
76
|
105
|
43
|
10
|
9
|
|
RM-120
|
120
|
76
|
105
|
43
|
10
|
9
|
|
RM-240
|
240
|
105
|
140
|
73
|
12
|
14
|
|
RM-360
|
360
|
105
|
140
|
73
|
12
|
14
|
|
RM-480
|
480
|
105
|
140
|
73
|
12
|
14
|
相關鏈接：彈簧減震器

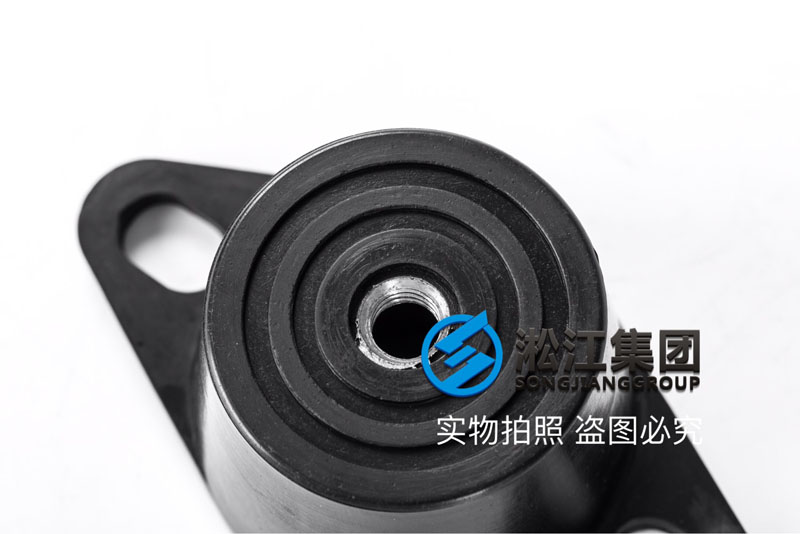

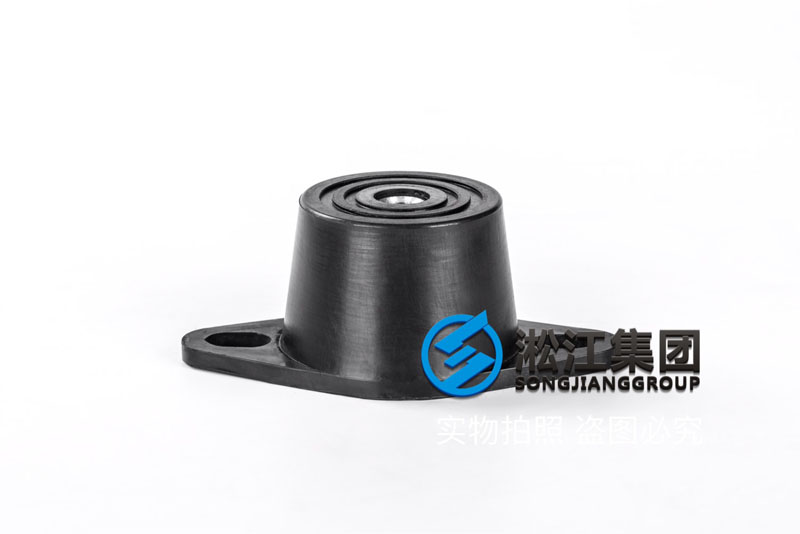

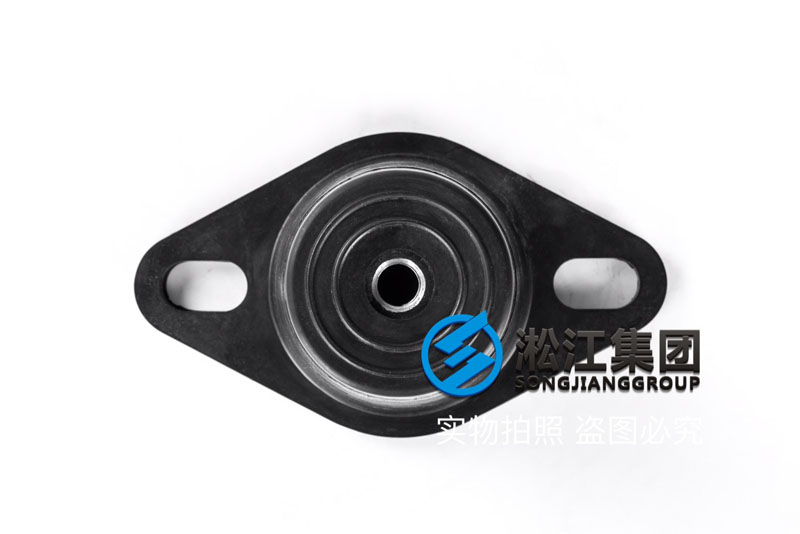

]]>Rubber shock absorber for RM360 distribution cabinet
上海淞江減震器集團有限公司官方網站為您介紹：RM360配電柜橡膠減震器，淞江集團為配電柜推薦一款經濟實用的橡膠減震器，RM系列，該款減震器安裝簡單方便，減震效果良好，橡膠型可以減震又可以隔音，是配電柜減震的優選產品。
Shanghai Songjiang absorber group limited official website introduces for you: RM360 distribution cabinet rubber shock absorber, Songjiang group distribution cabinet recommend an economical and practical rubber shock absorber, RM series, the shock absorber installation is simple and convenient, good damping effect, can reduce the shock and rubber insulation, is the preferred product the damping of power distribution cabinet.
配電柜橡膠減震器，既有橡膠剪切的承壓性能，又有過負荷保護的壓縮性能，整體成型，上端有螺紋安裝孔，下端有防滑底板，所有金屬由阻尼橡膠覆蓋。這種橡膠減振器適用于減少噪聲和高頻率振動場所，多用于轉速大于480轉/分的風機、立式臥式水泵、冷水機組等減振降噪。
The RM type rubber shock absorber has both the bearing performance of the rubber shear and the compression performance of overload protection. It has overall forming, the upper end has threaded installation holes, and the bottom part has anti-skid baseplate, all metals are covered by damping rubber. The rubber shock absorber is suitable for reducing noise and high frequency vibration places. It is mainly used for vibration and noise reduction of fans, vertical horizontal pumps and chillers, whose speed is greater than 480 rpm.
RM型配電柜橡膠減震器也可以使用在小型發電機、小型空壓機、小型電機，減震效果好，使用成本低，是眾多設備廠家配套.選。
以上RM360配電柜橡膠減震器信息來源于上海淞江減震器集團有限公司官方網站減震器欄目，以下是RM型橡膠減震器參數表：
The rubber damper information of the above RM360 distribution cabinet is from the shock absorber section of the official website of Shanghai Songjiang shock absorber Group Co., Ltd., the following is the RM rubber damper parameter table.
|
型號 Model
|
最佳載荷Optimal load
kg |
外形尺寸 Shape size?(mm)
|
||||
|
C
|
L
|
H
|
W
|
Φ
|
||
|
RM-60
|
60
|
76
|
105
|
43
|
10
|
9
|
|
RM-90
|
90
|
76
|
105
|
43
|
10
|
9
|
|
RM-120
|
120
|
76
|
105
|
43
|
10
|
9
|
|
RM-240
|
240
|
105
|
140
|
73
|
12
|
14
|
|
RM-360
|
360
|
105
|
140
|
73
|
12
|
14
|
|
RM-480
|
480
|
105
|
140
|
73
|
12
|
14
|
相關鏈接：彈簧減震器
]]>

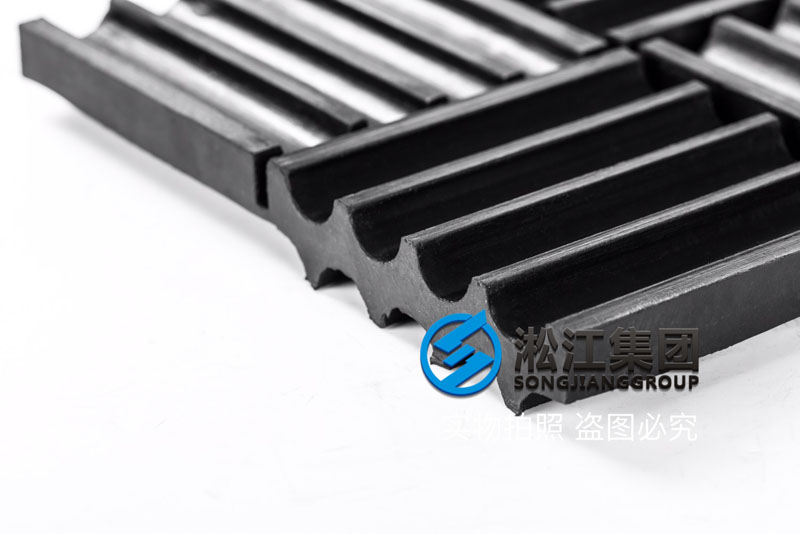

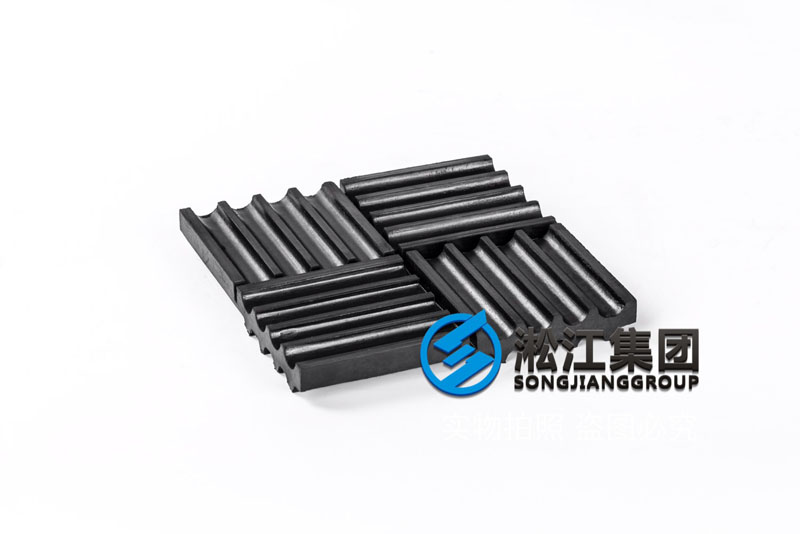

Rubber damping pad of 120*120*20 rubber cushion air compressor
上海淞江減震器集團有限公司官方網站為您介紹：120*120*20橡膠減震墊信息，淞江集團為空壓機推薦橡膠減震墊產品，該產品安裝簡單方便，成本低廉，工業空壓機減震要求不高的可以選擇使用。
Shanghai Songjiang absorber group limited official website for your introduction: 120*120*20 rubber shock pad, Songjiang group for air compressor recommended rubber shock pad product, the product is simple and convenient installation, low cost, industrial air compressor damping requirements is not high can choose to use.
Characteristics and use of products
說明：該產品沒有現貨，訂貨需要一周時間。
了解該產品詳細參數請查看：【樣冊P85】SD型 橡膠減振墊

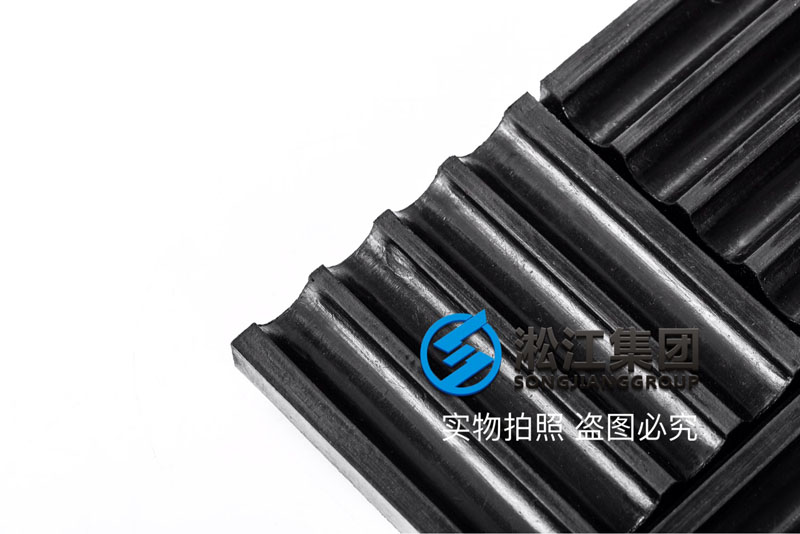

Rubber cushions for small equipment of 150*150*20 rubber cushions
上海淞江減震器集團有限公司官方網站為您介紹：150*150*20橡膠減震墊信息，淞江集團為小型設備推薦橡膠減震墊產品，安裝簡單方便，平放在設備底部即可，該產品為傳統減震，效果一般。
Shanghai Songjiang absorber group limited official website for your introduction: 150*150*20 rubber shock pad, Songjiang group for small devices recommended rubber shock pad products, simple and convenient installation, can be placed at the bottom of the device, the products of traditional damping, the general effect.
Characteristics and use of products
SD type rubber shock pad is made of high quality rubber as the material, there is a circular depression, corrugated hollow shear. In general, shear force, has low natural frequency, simple structure, easy to use. In order to improve the damping effect of the damping pad for two layer, three layer, four layer series. Suitable for water pump, fan, compressor, chiller, diesel and other mechanical equipment of negative damping.
The SD rubber cushion product produced by Songjiang group is produced by high quality natural rubber NR and has good elasticity and makes a certain contribution to the shock absorption of industrial plant.

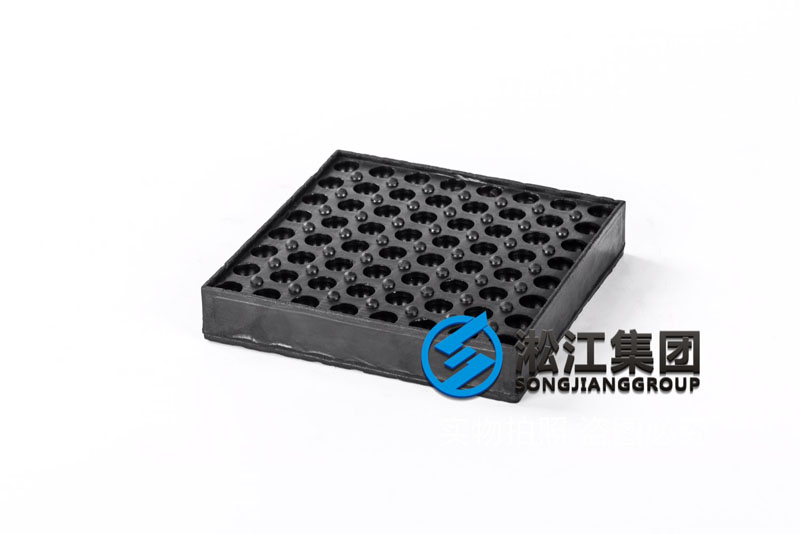

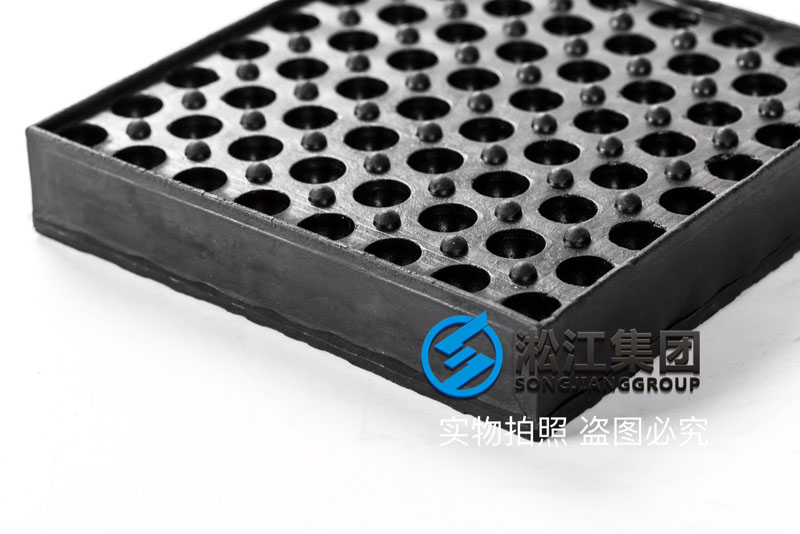

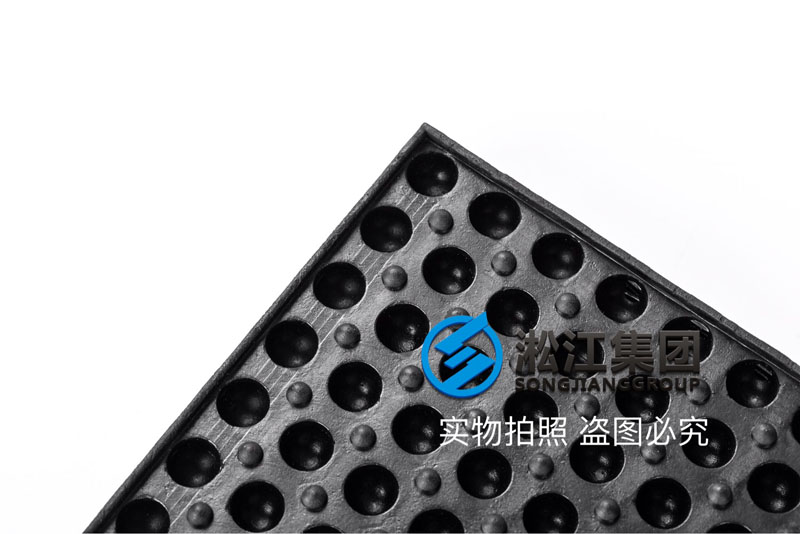

Rubber damping pad for industrial equipment of 170*170*20 rubber cushion
上海淞江減震器集團有限公司官方網站為您介紹：170*170*20橡膠減震墊信息，工業設備橡膠減震墊是一款最為普通的橡膠減震墊產品，沒有什么重量之分，平放在設備底部即可，是傳統的減震產品，效果一般。
Shanghai Songjiang absorber group limited official website for your introduction: 170*170*20 rubber shock pad, industrial equipment, rubber shock pad is a most common rubber shock pad products, not what weight, can be flat at the bottom of the device, is the product of traditional damping, the general effect.
The SD rubber ?shock absorber is manufactured by vulcanization using oil resistant rubber and stretch materials: whost surface can reduce the vertical rigidity.The basic dinension of the shock absorber cushion is 84x84x20(mm).The load range covers from 0.2~6KN．It needs no isolation walls.To improve shock absorption effect, multi-layer. isolation cushion should be used.Sepa-rate, layers can be separated by metal sheet(3mm). The total rigidity of n layers of cushion are 1/n that of a single layer.When the isolated object is relatively lighter, you can cut it into 2 pieces.The rigidity is 1/2 that of the original one. The separated isolating cushion can also be used in series.
SD type rubber shock pad is made of high quality rubber as the material, there is a circular depression, corrugated hollow shear. In general, shear force, has low natural frequency, simple structure, easy to use. In order to improve the damping effect of the damping pad for two layer, three layer, four layer series. Suitable for water pump, fan, compressor, chiller, diesel and other mechanical equipment of negative damping.
淞江集團生產的SD型工業設備橡膠減震墊產品是由優質的天然橡膠NR生產，彈性好，為工業廠房減震做出一定的貢獻。
The SD rubber cushion product produced by Songjiang group is produced by high quality natural rubber NR and has good elasticity and makes a certain contribution to the shock absorption of industrial plant.
SD型工業設備橡膠減震墊的特點是既有高彈性，又有高黏性。橡膠的彈性是由其卷曲分子構象的變化產生的，橡膠分子間相互作用會妨礙分子鏈的運動，從而表現出黏性阻尼的.點，以致應力與應變往往處于不平衡狀態。
The characteristics of rubber cushions are both high elasticity and high viscosity. The elasticity of rubber is caused by the change of its conformational conformation. The interaction between rubber molecules will impede the movement of molecular chains, thus exhibiting the characteristics of viscous damping, so that stress and strain are often in an unbalanced state.
電機組彈簧減震器-6.jpg "170*170*20橡膠減震墊 工業設備橡膠減震墊")
電機組彈簧減震器-7.jpg "170*170*20橡膠減震墊 工業設備橡膠減震墊")
了解該產品詳細參數請查看：【樣冊P85】SD型 橡膠減振墊
