BGF PTFE Corrugated expansion joint
BGF-PTFE型四氟波紋補償器又叫四氟膨脹節，它主要是由聚四氟乙烯材料在內壁與介質接觸，波紋的形狀使它具有伸縮作用，而四氟（聚四氟乙烯）又有較高的耐強酸堿、高溫、油類、油類還包括汽油、柴油、航空煤油等腐蝕類介質，它都具有很高的表現。
缺點：不耐負壓；
如何選擇：
0.6~1.6MPa選擇不銹鋼波紋補償器內襯四氟；
0.1~0.6MPa選擇內襯四氟外層不銹鋼編織網保護；
0.1MPa以下選擇四氟波紋，外加不銹鋼環；
Bgf-ptfe Teflon corrugated compensator is also called Teflon expansion joint. It is mainly made of Teflon material in contact with the
medium on the inner wall. The shape of the ripple makes it telescopic. Teflon (Teflon) has high resistance to strong acid-base, high
temperature, oil, oil, gasoline, diesel, aviation kerosene and other corrosive media, which has high performance.
How to select:
0.6 ~ 1.6MPa stainless steel corrugated compensator with PTFE lining;
0.1 ~ 0.6MPa, with PTFE lining and stainless steel braided mesh protection;Select tetrafluoro ripple below
0.1MPa and add stainless steel ring;
藥-食品）-4.jpg "BGF-PTFE型四氟波紋補償器（化工 醫藥 食品）")
藥-食品）-3.jpg "BGF-PTFE型四氟波紋補償器（化工 醫藥 食品）")
相關鏈接：PTFE內襯聚四氟乙烯橡膠接頭
]]>
BGF SUS Expansion Joint GB/T 12777-2008
上海淞江減震器集團有限公司官方網站為您介紹：BGF型不銹鋼波紋補償器信息，淞江集團2016年11月10日榮獲上海市質量技術監督局頒發的中華人民共和國特種設備制造許可證。
BGF型不銹鋼波紋補償器主要用食品、飲水、醫藥、化工、液壓等管道系統，起到補償管道伸長壓縮的作用；
適用于：波紋補償器是用在管線中間的產品，并非用于泵進出口。
法蘭和波紋材質：可以做不銹鋼304、316、321三種材質；
法蘭連接數據可以選擇GB/T 9119-2010（P100）也可以選擇其他法蘭標準生產；產品壓力：1.0MPa、1.6MPa、2.5MPa；
產品長度：標準長度與P93相同，也可以定制其他長度；
嚴禁超位移：建議波紋補償器應該在有效補償量內伸長、壓縮，請勿橫向位移；
施工防范：當焊接工作發生時，波紋補償器本體必須防止焊接發熱和火花；
介質要求：請在管道進水口加裝有效去除氯離子裝置（氯離子含量不超過25mg/L），避免水氯離子含量超標，產生針孔腐蝕；

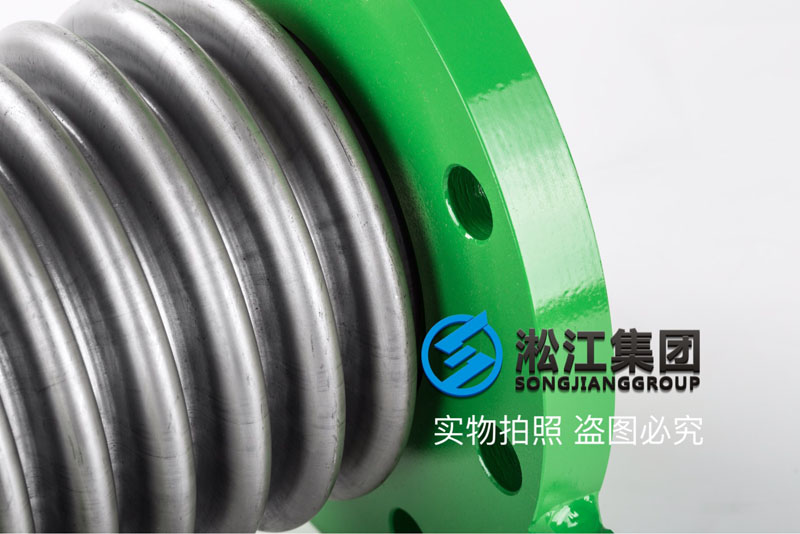

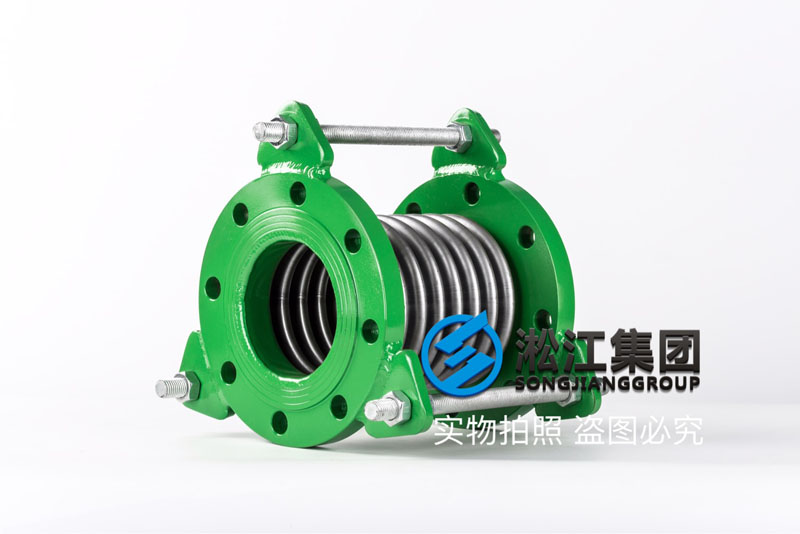

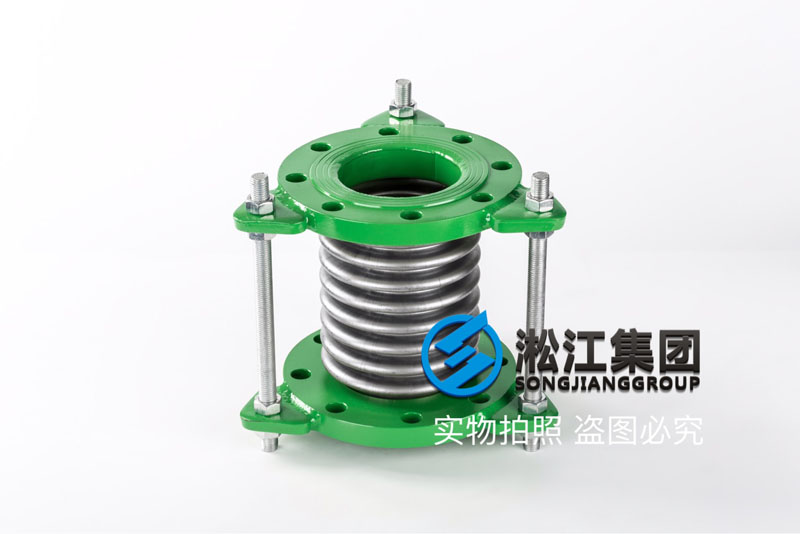

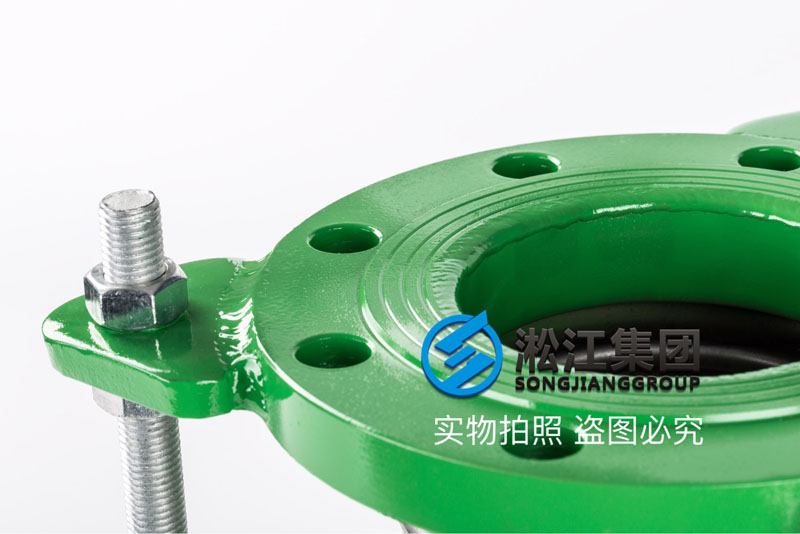

一、BGF型 不銹鋼波紋補償器實物拍照：
二、BGF型 不銹鋼波紋補償器結構及參數表：
三、BGF型 不銹鋼波紋補償器介紹：
BGF型不銹鋼波紋補償器采用奧氏體不銹鋼材料或按用戶要求的材料制造，具有優良的柔軟性，耐蝕性，耐高溫性，耐高壓性，在管路中可對任何方向進行連接，用以溫度補償和吸收振動、降低噪聲、改變介質輸送方向、消除管道間或管道與設備間的機械位移等，BGF型不銹鋼波紋補償器對有位移、振動的各種泵、閥等的柔性接頭尤為適用。
BGF型不銹鋼波紋補償器屬于一種補償元件。利用其工作主體波紋管的有效伸縮變形，以吸收管線、導管、容器等由熱脹冷縮等原因而產生的尺寸變化，或補償管線、導管、容器等的軸向位移。也可用于降噪減振。
材料說明：
波紋管體：為了更持久的使用壽命，全部采用不銹鋼304正材生產，支持各種光譜儀檢測，假一賠十，厚度全部厚于同行業標準。
連接法蘭：法蘭全部采用山西正宗鍛打材質，無論是強度還是密封性都是很好的材質，不要拿市面上的鑄鋼、鋼板鋼法蘭來對比，沒有任何可比性。
焊材：焊材全部采高于母材等級標準，讓焊接點更加牢固。
限位耳板：耳板全部采用加大加厚尺寸生產，每個型號都可以與同行業同型號去一對一的對比，這就是所謂的沒有對比就沒有傷害。
限位螺桿：螺桿全部采用8.8級高強度鍍鋅，為100%確保產品的綜合強度，不要與市面的4.8級來對比，無意義。
生產標準：淞江集團通過德國萊茵TUV認證，并且嚴格按照壓力管道生產要求進行生產，讓出廠的每一個BGF型不銹鋼波紋補償器產品達到100%的合格。
四、BGF型 不銹鋼波紋補償器發貨現場：
五、BGF型 不銹鋼波紋補償器光譜檢測：
六、BGF型 不銹鋼波紋補償器光譜檢測報告：
七、BGF型 不銹鋼波紋補償器檢測報告：
提示：如需最新版BGF型 不銹鋼波紋補償器檢測報告請聯系我們。
主要用食品、飲水、醫藥、化工、液壓等管道系統，起到補償管道伸長壓縮的軸向補償作用；
法蘭和波紋材質：可以做不銹鋼304、316、321三種材質；
法蘭連接數據可以選擇GB/T 9119-2010（樣冊P100）也可以選擇其他法蘭標準生產；
產品壓力：1.0MPa、1.6MPa、2.5MPa；
產品長度：標準長度與樣冊P93相同，也可以定制其他長度；
嚴禁超位移：建議波紋補償器應該在有效補償量內伸長、壓縮，請勿橫向位移；
施工防范：當焊接工作發生時，波紋補償器本體必須防止焊接發熱和火花；
介質要求：請在管道進水口加裝有效去除氯離子裝置（氯離子含量不超過25mg/L），避免水氯離子含量超標，產生針孔腐蝕；
橡膠接頭是用在設備進出口的，可以補償軸向和橫向位移，減震效果是最好的。并且不受管道內部介質的腐蝕。
不銹鋼的產品對水質要求比較高，水中氯離子含量超標的話，有可能會造成不銹鋼波紋腐蝕，造成漏水。
金屬軟管（外面帶編織網的）這種可以用在設備進出口，可以起到減震的作用，也可以補償橫向位移，軸向位移很小的。但是要注意介質腐蝕問題。
波紋補償器一般是用作管線熱脹冷縮補償管道軸向位移的，不能補償橫向位移，主要是伸長壓縮用，減震效果很低。波紋補償器是用在管線中間的產品。
九、BGF型 不銹鋼波紋補償器工廠介紹：
相關鏈接：【重慶天和國際中心】波紋補償器合同
]]>上海淞江減震器集團有限公司官方網站為您介紹：BGF-SUS型不銹鋼波紋膨脹節（食品 醫藥 化工 水電站 換流站）信息，淞江集團為您提供高品質不銹鋼波紋膨脹節產品，主要適用于食品、醫藥、化工、水電站、換流站等領域，以下是實物拍照，全是原創，請勿盜版。
The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces you the information of bgf-sus stainless steel corrugated expansion joint (converter station of food, medicine and chemical Hydropower Station). Songjiang group provides you with high-quality stainless steel corrugated expansion joint products, which are mainly applicable to food, medicine, chemical industry, hydropower station, converter station and other fields. The following are physical photos, which are all original and do not pirate.
一、BGF-SUS型不銹鋼波紋膨脹節實物拍照：
-1.jpg "BGF-SUS型不銹鋼波紋膨脹節")
-2.jpg "BGF-SUS型不銹鋼波紋膨脹節")
-3.jpg "BGF-SUS型不銹鋼波紋膨脹節")
-4.jpg "BGF-SUS型不銹鋼波紋膨脹節")
-5.jpg "BGF-SUS型不銹鋼波紋膨脹節")
二、BGF-SUS型不銹鋼波紋膨脹節介紹：
BGF-SUS型不銹鋼波紋膨脹節為補償因溫度差與機械振動引起的附加應力，而設置在容器殼體或管道上的一種撓性結構。
主要用食品、飲水、醫藥、化工、液壓等管道系統，起到補償管道伸長壓縮的軸向補償作用；
法蘭和波紋材質：可以做不銹鋼304、316、321三種材質；
法蘭連接數據可以選擇GB/T 9119-2010（樣冊P100）也可以選擇其他法蘭標準生產；
產品壓力：1.0MPa、1.6MPa、2.5MPa；
產品長度：標準長度與樣冊P93相同，也可以定制其他長度；
嚴禁超位移：建議波紋補償器應該在有效補償量內伸長、壓縮，請勿橫向位移；
施工防范：當焊接工作發生時，波紋補償器本體必須防止焊接發熱和火花；
介質要求：請在管道進水口加裝有效去除氯離子裝置（氯離子含量不超過25mg/L），避免水氯離子含量超標，產生針孔腐蝕；
橡膠接頭是用在設備進出口的，可以補償軸向和橫向位移，減震效果是最好的。并且不受管道內部介質的腐蝕。
不銹鋼的產品對水質要求比較高，水中氯離子含量超標的話，有可能會造成不銹鋼波紋腐蝕，造成漏水。
金屬軟管（外面帶編織網的）這種可以用在設備進出口，可以起到減震的作用，也可以補償橫向位移，軸向位移很小的。但是要注意介質腐蝕問題。
波紋補償器一般是用作管線熱脹冷縮補償管道軸向位移的，不能補償橫向位移，主要是伸長壓縮用，減震效果很低。
適用于：波紋補償器是用在管線中間的軸向補償產品，不適用于水泵進出口。
三、BGF-SUS型不銹鋼波紋膨脹節發貨現場：
-7.jpg "BGF-SUS型不銹鋼波紋膨脹節")
四、BGF-SUS型不銹鋼波紋膨脹節介紹：
BGF-SUS型不銹鋼波紋膨脹節屬于一種補償元件。利用其工作主體波紋管的有效伸縮變形，以吸收管線、導管、容器等由熱脹冷縮等原因而產生的尺寸變化，或補償管線、導管、容器等的軸向位移。也可用于降噪減振。
材料說明：
波紋管體：為了更持久的使用壽命，全部采用不銹鋼304正材生產，支持各種光譜儀檢測，假一賠十，厚度全部厚于同行業標準。
焊材：焊材全部采高于母材等級標準，讓焊接點更加牢固。
限位耳板：耳板全部采用加大加厚尺寸生產，每個型號都可以與同行業同型號去一對一的對比，這就是所謂的沒有對比就沒有傷害。
Bgf-sus stainless steel corrugated expansion joint is made of austenitic stainless steel or materials required by users. It has excellent flexibility, corrosion resistance, high temperature resistance and high pressure resistance. It can be connected in any direction in the pipeline to compensate for temperature, absorb vibration, reduce noise, change the direction of medium transmission, eliminate mechanical displacement between pipelines or between pipelines and equipment, etc. bgf-sus stainless steel corrugated expansion joint has displacement The flexible joints of various pumps and valves that vibrate are particularly suitable.
Bgf-sus stainless steel corrugated expansion joint belongs to a compensation element. The effective expansion deformation of the bellows of its working body is used to absorb the dimensional changes of pipelines, conduits and containers caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacement of pipelines, conduits and containers. It can also be used for noise reduction and vibration reduction.
Material description:
Bellows body: in order to prolong the service life, all of them are made of stainless steel 304 normal materials, and support the detection of various spectrometers. One false is compensated for ten, and the thickness is all thicker than that of the same industry standard.
Welding materials: all welding materials shall be higher than the grade standard of base metal to make the welding point more firm.
Limit ear plate: all ear plates are produced by increasing the thickened size. Each model can be compared one-to-one with the same model in the same industry, which is the so-called no harm without comparison.
五、BGF-SUS型不銹鋼波紋膨脹節光譜檢測現場：
六、BGF-SUS型不銹鋼波紋膨脹節光譜檢測報告：
七、BGF-SUS型不銹鋼波紋膨脹節檢測報告：
提示：如需最新版BGF型 不銹鋼波紋補償器檢測報告請聯系我們。
八、BGF-SUS型不銹鋼波紋膨脹節工廠介紹：
-8.jpg "BGF-SUS型不銹鋼波紋膨脹節")
-9.jpg "BGF-SUS型不銹鋼波紋膨脹節")
Pipe shock absorber bellows joint
上海淞江減震器集團有限公司官方網站為您介紹：DN40管道減震波紋管接頭信息，淞江集團為您推薦一款管道減震的波紋管接頭產品，該產品安裝在管道上可以完美的補償管道軸向位移，以下是詳細介紹。
Shanghai Songjiang absorber group limited official website for your introduction: DN40 pipe shock corrugated pipe joint, corrugated Songjiang group to recommend a pipe shock tube connector products, the product is installed in the pipeline can perfect absorption pipeline vibration, the following is a detailed introduction.
制造商：上海淞江減震器集團有限公司
DN40管道減震波紋管接頭屬于一種補償元件。利用其工作主體波紋管的有效伸縮變形，以吸收管線、導管、容器等由熱脹冷縮等原因而產生的尺寸變化，或補償管線、導管、容器等的軸向位移。也可用于降噪減振。
材料說明：
波紋管體：為了更持久的使用壽命，全部采用不銹鋼304正材生產，支持各種光譜儀檢測，假一賠十，厚度全部厚于同行業標準。
連接法蘭：法蘭全部采用山西正宗鍛打材質，無論是強度還是密封性都是很好的材質，不要拿市面上的鑄鋼、鋼板鋼法蘭來對比，沒有任何可比性。
焊材：焊材全部采高于母材等級標準，讓焊接點更加牢固。
限位耳板：耳板全部采用加大加厚尺寸生產，每個型號都可以與同行業同型號去一對一的對比，這就是所謂的沒有對比就沒有傷害。
限位螺桿：螺桿全部采用8.8級高強度鍍鋅，為100%確保產品的綜合強度，不要與市面的4.8級來對比，無意義。
生產標準：淞江集團通過德國萊茵TUV認證，并且嚴格按照壓力管道生產要求進行生產，讓出廠的每一個波紋補償器產品達到100%的合格。
The Dn40 pipeline damping bellows joint is made of austenitic stainless steel or materials required by users, which has excellent flexibility, corrosion resistance, high temperature resistance and high pressure resistance. It can be connected in any direction in the pipeline to compensate for temperature, absorb vibration, reduce noise, change the medium transmission direction, eliminate mechanical displacement between pipelines or between pipelines and equipment, etc. the Dn40 pipeline damping bellows joint has displacement The flexible joints of various pumps and valves that vibrate are particularly suitable.
The Dn40 pipeline damping bellows joint belongs to a compensation element. The effective expansion deformation of the bellows of its working body is used to absorb the dimensional changes of pipelines, conduits and containers caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacement of pipelines, conduits and containers. It can also be used for noise reduction and vibration reduction.
Material description:
Bellows body: in order to prolong the service life, all of them are made of stainless steel 304 normal materials, and support the detection of various spectrometers. One false is compensated for ten, and the thickness is all thicker than that of the same industry standard.
Connecting flanges: all flanges are made of Shanxi authentic forged materials, which are good in strength and tightness. Do not compare them with cast steel, steel plate and steel flanges on the market. There is no comparability.
Welding materials: all welding materials shall be higher than the grade standard of base metal to make the welding point more firm.
Limit ear plate: all ear plates are produced by increasing the thickened size. Each model can be compared one-to-one with the same model in the same industry, which is the so-called no harm without comparison.
Limit screw: all screws are made of grade 8.8 high-strength galvanized to ensure 100% of the comprehensive strength of the product. It is meaningless to compare with grade 4.8 in the market.
Production standard: Songjiang group has passed the TUV certification of Rhine, Germany, and produces in strict accordance with the production requirements of pressure pipeline, so that each corrugated compensator product delivered can reach 100% qualification.
相關鏈接：【廣州蓄能水電廠】主變冷卻波紋補償器合同
Sungkiang Corrugated compensator
上海淞江減震器集團有限公司官方網站為您介紹：DN50上海淞江波紋補償器信息，淞江集團是一家從事管道波紋補償器的生產廠家，注冊資金5000萬，占地18畝，建筑面積10000平方米，擁有自己研發、設計、生產、檢測等能力。
Shanghai Songjiang absorber group limited official website introduces for you: DN50 Shanghai Songjiang Songjiang bellows information group is a professional manufacturer engaged in pipeline compensator, the registered capital of 50 million, covers an area of 15 mu, building area of 10000 square meters, has its own R & D, design, production and testing capabilities.
制造商：上海淞江減震器集團有限公司
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
波紋管體：為了更持久的使用壽命，全部采用不銹鋼304正材生產，支持各種光譜儀檢測，假一賠十，厚度全部厚于同行業標準。
連接法蘭：法蘭全部采用山西正宗鍛打材質，無論是強度還是密封性都是很好的材質，不要拿市面上的鑄鋼、鋼板鋼法蘭來對比，沒有任何可比性。
焊材：焊材全部采高于母材等級標準，讓焊接點更加牢固。
限位耳板：耳板全部采用加大加厚尺寸生產，每個型號都可以與同行業同型號去一對一的對比，這就是所謂的沒有對比就沒有傷害。
限位螺桿：螺桿全部采用8.8級高強度鍍鋅，為100%確保產品的綜合強度，不要與市面的4.8級來對比，無意義。
生產標準：淞江集團通過德國萊茵TUV認證，并且嚴格按照壓力管道生產要求進行生產，讓出廠的每一個波紋補償器產品達到100%的合格。
DN50上海淞江波紋補償器屬于一種補償元件。利用其工作主體波紋管的有效伸縮變形，以吸收管線、導管、容器等由熱脹冷縮等原因而產生的軸向尺寸變化，或補償管線、導管、容器等的軸向位移；也可用于降噪減振。
Material description:
Bellows body: in order to prolong the service life, all of them are made of stainless steel 304 normal materials, and support the detection of various spectrometers. One false is compensated for ten, and the thickness is all thicker than that of the same industry standard.
Connecting flanges: all flanges are made of Shanxi authentic forged materials, which are good in strength and tightness. Do not compare them with cast steel, steel plate and steel flanges on the market. There is no comparability.
Welding materials: all welding materials shall be higher than the grade standard of base metal to make the welding point more firm.
Limit ear plate: all ear plates are produced by increasing the thickened size. Each model can be compared one-to-one with the same model in the same industry, which is the so-called no harm without comparison.
Limit screw: all screws are made of grade 8.8 high-strength galvanized to ensure 100% of the comprehensive strength of the product. It is meaningless to compare with grade 4.8 in the market.
Production standard: Songjiang group has passed the TUV certification of Rhine, Germany, and produces in strict accordance with the production requirements of pressure pipeline, so that each corrugated compensator product delivered can reach 100% qualification.
DN50 Shanghai Songjiang corrugated compensator is made of austenitic stainless steel or materials required by users. It has excellent flexibility, corrosion resistance, high temperature resistance and high pressure resistance. It can be connected in any direction in the pipeline to compensate for temperature, absorb vibration, reduce noise, change the direction of medium transmission, eliminate mechanical displacement between pipelines or between pipelines and equipment, etc. DN50 Shanghai Songjiang corrugated compensator has displacement The flexible joints of various pumps and valves that vibrate are particularly suitable.
DN50 Shanghai Songjiang corrugated compensator belongs to a compensation element. The effective expansion deformation of the bellows of its working body is used to absorb the dimensional changes of pipelines, conduits and containers caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacement of pipelines, conduits and containers. It can also be used for noise reduction and vibration reduction.
Fire pump corrugated expansion joint
上海淞江減震器集團有限公司官方網站為您介紹：DN65消防管線波紋伸縮節信息，淞江集團為消防泵推薦一款減震效果好的波紋伸縮節產品，該產品是由不銹鋼波紋生產而成 ，具有良好的吸收軸向位移效果，采用不銹鋼生產具有良好的耐用效果。
Shanghai Songjiang absorber group limited official website for your introduction: DN65 fire pump bellows expansion joints, Songjiang group for the fire pump to recommend a good damping effect of the corrugated expansion joint product, the product is made of corrugated stainless steel production, has good damping effect, the production of stainless steel with a durable good effect.
制造商：上海淞江減震器集團有限公司
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
了解該產品參數信息請點擊：【樣冊P93】BGF型 不銹鋼波紋補償器
材料說明：
波紋管體：為了更持久的使用壽命，全部采用不銹鋼304正材生產，支持各種光譜儀檢測，假一賠十，厚度全部厚于同行業標準。
連接法蘭：法蘭全部采用山西正宗鍛打材質，無論是強度還是密封性都是很好的材質，不要拿市面上的鑄鋼、鋼板鋼法蘭來對比，沒有任何可比性。
焊材：焊材全部采高于母材等級標準，讓焊接點更加牢固。
限位耳板：耳板全部采用加大加厚尺寸生產，每個型號都可以與同行業同型號去一對一的對比，這就是所謂的沒有對比就沒有傷害。
限位螺桿：螺桿全部采用8.8級高強度鍍鋅，為100%確保產品的綜合強度，不要與市面的4.8級來對比，無意義。
生產標準：淞江集團通過德國萊茵TUV認證，并且嚴格按照壓力管道生產要求進行生產，讓出廠的每一個DN65消防泵波紋伸縮節產品達到100%的合格。
DN65消防泵波紋伸縮節采用奧氏體不銹鋼材料或按用戶要求的材料制造，具有優良的柔軟性，耐蝕性，耐高溫性，耐高壓性，在管路中補償軸向位移，用以溫度補償和吸收振動、降低噪聲、改變介質輸送方向、消除管道間或管道與設備間的軸向位移等，DN65消防泵波紋伸縮節對有軸向位移的管道補償尤為適用。
DN65消防泵波紋伸縮節屬于一種補償元件。利用其工作主體波紋管的有效伸縮變形，以吸收管線、導管、容器等由熱脹冷縮等原因而產生的軸向變化，或補償管線、導管、容器等的軸向位移；也可用于降噪減振。
Material description:
Bellows body: in order to prolong the service life, all of them are made of stainless steel 304 normal materials, and support the detection of various spectrometers. One false is compensated for ten, and the thickness is all thicker than that of the same industry standard.
Connecting flanges: all flanges are made of Shanxi authentic forged materials, which are good in strength and tightness. Do not compare them with cast steel, steel plate and steel flanges on the market. There is no comparability.
Welding materials: all welding materials shall be higher than the grade standard of base metal to make the welding point more firm.
Limit ear plate: all ear plates are produced by increasing the thickened size. Each model can be compared one-to-one with the same model in the same industry, which is the so-called no harm without comparison.
Limit screw: all screws are made of grade 8.8 high-strength galvanized to ensure 100% of the comprehensive strength of the product. It is meaningless to compare with grade 4.8 in the market.
Production standard: Songjiang group has passed the TUV certification of Rhine, Germany, and is produced in strict accordance with the production requirements of pressure pipeline, so that each DN65 fire pump corrugated expansion joint product can reach 100% qualification.
DN65 fire pump bellows expansion joint is made of austenitic stainless steel or materials required by users, with excellent flexibility, corrosion resistance, high temperature resistance and high pressure resistance. It can be connected in any direction in the pipeline to compensate for temperature, absorb vibration, reduce noise, change the direction of medium transmission, eliminate mechanical displacement between pipelines or between pipelines and equipment, etc. DN65 fire pump bellows expansion joint has displacement The flexible joints of various pumps and valves that vibrate are particularly suitable.
The DN65 fire pump corrugated expansion joint belongs to a compensation element. The effective expansion deformation of the bellows of its working body is used to absorb the dimensional changes of pipelines, conduits and containers caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacement of pipelines, conduits and containers. It can also be used for noise reduction and vibration reduction.
以上DN65消防泵波紋伸縮節信息來源于上海淞江減震器集團有限公司官方網站，如需了解更多產品信息請點擊：上海波紋補償器
The above DN65 fire pump corrugated expansion joint information comes from the corrugated compensator product center of the official website of Shanghai Songjiang shock absorber Group Co., Ltd.
相關鏈接：【蘇州博世汽車部件項目】波紋補償器合同
]]>Orthodox 304 bellows compensator
上海淞江減震器集團有限公司官方網站為您介紹：DN80正宗304波紋管補償器信息，淞江集團是一家生產波紋補償器的廠家，我廠承諾所有波紋管補償器采用波紋全部采用正宗不銹鋼304材質，鎳含量達到8個以上，支持各種光譜檢測，假一賠十。
Shanghai Songjiang absorber group limited official website introduces for you: DN80 304 authentic bellows, Songjiang group is a professional manufacturer of corrugated compensator factory, our factory commitment of all corrugated pipe compensator using corrugated with authentic 304 stainless steel material, nickel content reached more than 8, support a variety of spectrum detection, false a lose ten.
制造商：上海淞江減震器集團有限公司
波紋管體：為了更持久的使用壽命，全部采用不銹鋼304正材生產，支持各種光譜儀檢測，假一賠十，厚度全部厚于同行業標準。
連接法蘭：法蘭全部采用山西正宗鍛打材質，無論是強度還是密封性都是很好的材質，不要拿市面上的鑄鋼、鋼板鋼法蘭來對比，沒有任何可比性。
焊材：焊材全部采高于母材等級標準，讓焊接點更加牢固。
限位耳板：耳板全部采用加大加厚尺寸生產，每個型號都可以與同行業同型號去一對一的對比，這就是所謂的沒有對比就沒有傷害。
限位螺桿：螺桿全部采用8.8級高強度鍍鋅，為100%確保產品的綜合強度，不要與市面的4.8級來對比，無意義。
生產標準：淞江集團通過德國萊茵TUV認證，并且嚴格按照壓力管道生產要求進行生產，讓出廠的每一個波紋補償器產品達到100%的合格。
Material description:
Bellows body: in order to prolong the service life, all of them are made of stainless steel 304 normal materials, and support the detection of various spectrometers. One false is compensated for ten, and the thickness is all thicker than that of the same industry standard.
Connecting flanges: all flanges are made of Shanxi authentic forged materials, which are good in strength and tightness. Do not compare them with cast steel, steel plate and steel flanges on the market. There is no comparability.
Welding materials: all welding materials shall be higher than the grade standard of base metal to make the welding point more firm.
Limit ear plate: all ear plates are produced by increasing the thickened size. Each model can be compared one-to-one with the same model in the same industry, which is the so-called no harm without comparison.
Limit screw: all screws are made of grade 8.8 high-strength galvanized to ensure 100% of the comprehensive strength of the product. It is meaningless to compare with grade 4.8 in the market.
Production standard: Songjiang group has passed the TUV certification of Rhine, Germany, and produces in strict accordance with the production requirements of pressure pipeline, so that each corrugated compensator product delivered can reach 100% qualification.
DN80 authentic 304 bellows compensator is made of austenitic stainless steel or materials required by users. It has excellent flexibility, corrosion resistance, high temperature resistance and high pressure resistance. It can be connected in any direction in the pipeline to compensate for temperature, absorb vibration, reduce noise, change the direction of medium transmission, eliminate mechanical displacement between pipelines or between pipelines and equipment, etc. DN80 authentic 304 bellows compensator has displacement The flexible joints of various pumps and valves that vibrate are particularly suitable.
DN80 authentic 304 bellows compensator belongs to a compensation element. The effective expansion deformation of the bellows of its working body is used to absorb the dimensional changes of pipelines, conduits and containers caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacement of pipelines, conduits and containers. It can also be used for noise reduction and vibration reduction.
GB flanged corrugated compensator
上海淞江減震器集團有限公司官方網站為您介紹：DN100國標法蘭波紋補償器信息，淞江集團生產的波紋補償器產品全部采用國標型法蘭生產，這里的國標不單單指的是法蘭鏈接尺寸問題，而且還包括外徑和厚度，外徑和厚度達到了國標，那么就屬于國標法蘭了嗎？并不是這么簡單，還要看法蘭材質，淞江集團波紋補償器法蘭全部采用山西鍛打法蘭，為什么要說是山西鍛打法蘭呢？業內人士都知道，在國內做鍛打碳鋼法蘭做的.好的就是山西了，所以，正宗的國標法蘭就是要法蘭材質達標，還要各項參數達標才能算是國標法蘭。
Shanghai Songjiang absorber group limited official website for you to introduce DN100 standard flange compensator, corrugated compensator products Songjiang Group production of all GB flange production, here not only refers to the standard flange link the size, but also the diameter and thickness, diameter and thickness reached the national standard, so it belongs to the standard flange? It's not so simple. It depends on the flange material. The flange compensator flange of Songjiang group is all made by Shanxi forging flange. Why do we call it Shanxi forging flange? People in the industry know that the best way to do forged carbon steel flanges in Shanxi is in China, so the authentic GB flanges should be flanges, and all the parameters should be qualified to be the GB flange.
制造商：上海淞江減震器集團有限公司
DN100國標法蘭波紋補償器屬于一種補償元件。利用其工作主體波紋管的有效伸縮變形，以吸收管線、導管、容器等由熱脹冷縮等原因而產生的軸向位移，或補償管線、導管、容器等的軸向位移。也可用于降噪減振。
相關鏈接：【青島華潤中心悅府項目】波紋補償器合同
Fire bellows shock absorber joint
上海淞江減震器集團有限公司官方網站為您介紹：DN125消防水箱管道波紋減震接頭信息，淞江集團為眾多消防工程配套波紋減震接頭產品，改產是由不銹鋼生產的波紋，該波紋具有良好的減震效果和軸向位移補償作用，可以有效的保護消防水箱管道的長期使用壽命。
Shanghai Songjiang absorber group limited official website for your introduction: DN125 fire water tank bellows joint damping information, Songjiang group for a number of fire engineering supporting corrugated joint damping products, the production is made of corrugated stainless steel production, the bellows has good damping effect, long can effectively protect the fire water tank.
制造商：上海淞江減震器集團有限公司
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
生產標準：淞江集團通過德國萊茵TUV認證，并且嚴格按照壓力管道生產要求進行生產，讓出廠的每一個水箱波紋減震接頭產品達到100%的合格。
相關鏈接：【青島華潤中心悅府項目】波紋補償器合同
]]>Stainless steel metal expansion joint
上海淞江減震器集團有限公司官方網站為您介紹：DN150不銹鋼金屬膨脹節信息，淞江集團生產管道連接金屬膨脹節產品，主要起到管道熱脹冷縮時補償軸向位移的作用，從而起到保護管道和設備的優點。
Shanghai Songjiang absorber group limited official website for your introduction: DN150 stainless steel metal expansion joint, professional production pipeline Songjiang group connected with metal expansion joint products, mainly to pipeline expansion and contraction when play compensation, so as to protect the pipeline and equipment function.
制造商：上海淞江減震器集團有限公司
